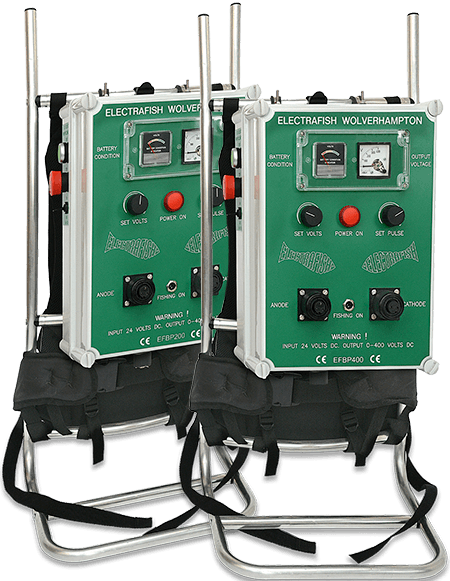

The EFBP200 is an effective, powerful and compact backpack electric fishing machine designed specifically for catching fish and invertebrates in small streams up to 1500 mm wide and 500 mm deep. Part of a 2 model backpack range, the EFBP200 is for streams with higher conductivity waters such as exist in East Anglia and Essex and the Thames region.

The backpack has a frame and shoulder straps with a quick release waist belt and is supplied with 2 sets of batteries, 2 chargers, anode and cathode.

The EFBP200 can also be used as a bankside model if required with a long cable anode and in this case the safety tilt and float switch circuits can be disconnected by using the switch provided.

The anodes and cathodes supplied with this machine use special compact waterproof connectors. For bankside use a 50 or 100 metre cable can be supplied fitted to a strong cable drum.

Full instructions and a 3 year warranty, subject to conditions, are supplied with each machine.

Input: 24 Volts DC

Output:

• Pulsed DC Output at 40 pulses per second
• Pulse Width variable from 0 to 50%
• Maximum Output 400 Watts

Protection:

• All machines are protected by easily accessible high speed semiconductor fuses.
• A full set of spare fuses is provided.

Controls and Indicators:

• Start button
• Stop button
• Power on LED
• Fishing on Alert
• Set Output Voltage Control 0-200 volts DC
• Set Pulse Width Control 0-50%
• Battery condition meter
• Voltmeter 0-200 Volts DC
• Tilt and Float selector switch (only operational when used with a 50 or 100 metre cable anode)

Sockets:

• Compact waterproof sockets for anode & cathode

Size and Weight:

• Weight: 7 Kg
• Height: 380mm
• Width: 280mm
• Depth: 200mm

All machines, electrodes and electric fishing generators designed and built by Electrafish Ltd are made to order and often customized to meet the specific requirements of the application.

These include consideration of voltage and current levels appropriate to the targeted water conductivity ratings, electrode sizing, cable lengths as well as the most suitable generator modified for safe electric fishing use.

While Electrafish manufactures a standard range of battery and generator powered electric fishing machines with standard ratings up to 400 volts and 4 Kw, we have supplied machines with outputs of 0- 1500 volts and power levels up to 10 Kw. In view of the wide variety of equipment manufactured by Electrafish Ltd, coupled with our principal objective which is to strive always to optimise customer satisfaction on all sales, please contact us, and we will be pleased to discuss your requirements and send you our best prices.
